Location:Home > Products > Cartoning Machine > JNC-120B Automatic Carton…

Cartoning Machine

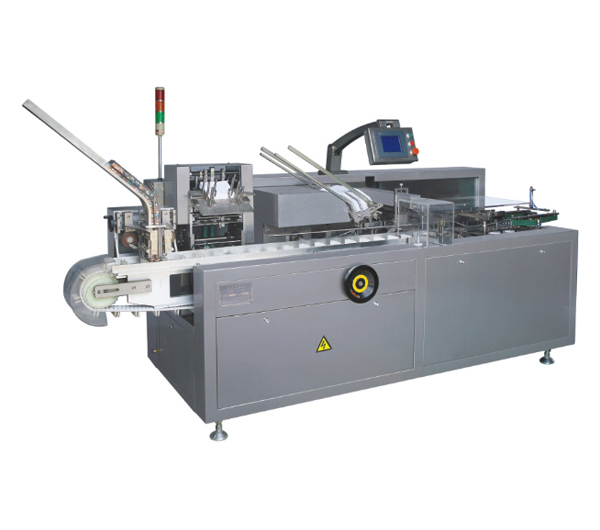

JNC-120B Automatic Cartoning Machine

  JNC-120B Automatic Cartoning Machine

This equipment is new model developing base on integrated domestic and foreign vanguard technology .It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.

This machine is suitable for blister package product,adjust automatic feeding structure conveniently,setup quantity of blisters on touch screen randomly.On line product feeding and detecting,leaflet fold(1-4folds) and feeding,leaflet detecting,canton opening and forming,products and leaflet pushing into carton,printing batch number,sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Features:

1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.

2.Adopt human-machine operation system.

3.Automatically stop when machine is overload.

4.Automatically reject lacking of package product and leaflet.

5.Automatically display trouble, Alarm and count finished products.

6.Stable performance,operation is easy.

ItemParameters
Encasing speed30-120 boxes /min
BoxQuality requirement250-350g/㎡【Base on carton size】
Dimension range(L×W×H)(70-180)mm×(35-85)mm×(14-50)mm
LeafletQuality requirement60-70g/㎡
Unfolded leaflet specification(L×W)(80-250)mm×(90-170)mm
Fold range【1-4】Fold
Compressed airWorking pressure≥0.6mpa
Air consumption120-160L/min
Power supply220V  50HZ
Main motor power0.75kw
Machine dimension(L×W×H)3100mm×1100mm×1550mm
Machine weight1400kg
